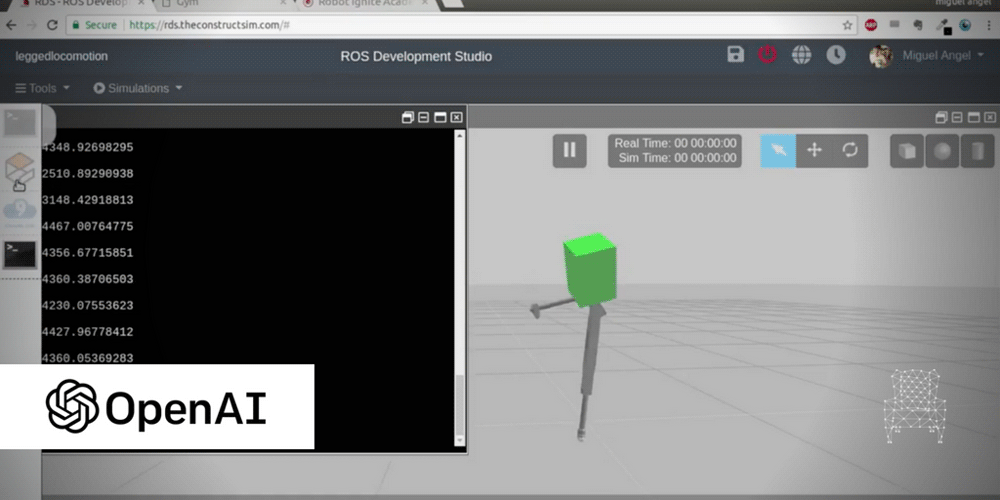

[ROS Projects] OpenAI with Hopper Robot in Gazebo Step-by-Step #Part2

We continue setting up OpenAI-Gym to make a Hopper robot learn in Gazebo simulator, using ROS Development Studio.

If you didn’t follow the previous post, here are the links:

[ROS Projects] Create a Hopper Robot in Gazebo Step-by-Step

[ROS Projects] OpenAI with Hopper Robot in Gazebo Step-by-Step

Got a suggestion for the next steps to take of this project? We would love to hear them in the comments bellow :).

Part 2

Step 1. Environment setup

We’ll start by explaining how to create the gym environment for training. You can create a file called monoped_env.py under the my_hopper_training/src directory with the following content

#!/usr/bin/env python
'''
    By Miguel Angel Rodriguez <duckfrost@theconstructsim.com>
    Visit our website at ec2-54-246-60-98.eu-west-1.compute.amazonaws.com
'''
import gym
import rospy
import numpy as np
import time
from gym import utils, spaces
from geometry_msgs.msg import Pose
from gym.utils import seeding
from gym.envs.registration import register
from gazebo_connection import GazeboConnection
from joint_publisher import JointPub
from monoped_state import MonopedState
from controllers_connection import ControllersConnection

#register the training environment in the gym as an available one
reg = register(
    id='Monoped-v0',
    entry_point='monoped_env:MonopedEnv',
    timestep_limit=50,
    )


class MonopedEnv(gym.Env):

    def __init__(self):

        # We assume that a ROS node has already been created
        # before initialising the environment

        # gets training parameters from param server
        self.desired_pose = Pose()
        self.desired_pose.position.x = rospy.get_param("/desired_pose/x")
        self.desired_pose.position.y = rospy.get_param("/desired_pose/y")
        self.desired_pose.position.z = rospy.get_param("/desired_pose/z")
        self.running_step = rospy.get_param("/running_step")
        self.max_incl = rospy.get_param("/max_incl")
        self.max_height = rospy.get_param("/max_height")
        self.min_height = rospy.get_param("/min_height")
        self.joint_increment_value = rospy.get_param("/joint_increment_value")
        self.done_reward = rospy.get_param("/done_reward")
        self.alive_reward = rospy.get_param("/alive_reward")
        self.desired_force = rospy.get_param("/desired_force")
        self.desired_yaw = rospy.get_param("/desired_yaw")

        self.weight_r1 = rospy.get_param("/weight_r1")
        self.weight_r2 = rospy.get_param("/weight_r2")
        self.weight_r3 = rospy.get_param("/weight_r3")
        self.weight_r4 = rospy.get_param("/weight_r4")
        self.weight_r5 = rospy.get_param("/weight_r5")

        # stablishes connection with simulator
        self.gazebo = GazeboConnection()

        self.controllers_object = ControllersConnection(namespace="monoped")

        self.monoped_state_object = MonopedState(   max_height=self.max_height,
                                                    min_height=self.min_height,
                                                    abs_max_roll=self.max_incl,
                                                    abs_max_pitch=self.max_incl,
                                                    joint_increment_value=self.joint_increment_value,
                                                    done_reward=self.done_reward,
                                                    alive_reward=self.alive_reward,
                                                    desired_force=self.desired_force,
                                                    desired_yaw=self.desired_yaw,
                                                    weight_r1=self.weight_r1,
                                                    weight_r2=self.weight_r2,
                                                    weight_r3=self.weight_r3,
                                                    weight_r4=self.weight_r4,
                                                    weight_r5=self.weight_r5
                                                )

        self.monoped_state_object.set_desired_world_point(self.desired_pose.position.x,
                                                          self.desired_pose.position.y,
                                                          self.desired_pose.position.z)

        self.monoped_joint_pubisher_object = JointPub()



        """
        For this version, we consider 6 actions
        1-2) Increment/Decrement haa_joint
        3-4) Increment/Decrement hfe_joint
        5-6) Increment/Decrement kfe_joint
        """
        self.action_space = spaces.Discrete(6)
        self.reward_range = (-np.inf, np.inf)

        self._seed()

    # A function to initialize the random generator
    def _seed(self, seed=None):
        self.np_random, seed = seeding.np_random(seed)
        return [seed]

    # Resets the state of the environment and returns an initial observation.
    def _reset(self):

        # 0st: We pause the Simulator
        rospy.logdebug("Pausing SIM...")
        self.gazebo.pauseSim()

        # 1st: resets the simulation to initial values
        rospy.logdebug("Reset SIM...")
        self.gazebo.resetSim()

        # 2nd: We Set the gravity to 0.0 so that we dont fall when reseting joints
        # It also UNPAUSES the simulation
        rospy.logdebug("Remove Gravity...")
        self.gazebo.change_gravity(0.0, 0.0, 0.0)

        # EXTRA: Reset JoinStateControlers because sim reset doesnt reset TFs, generating time problems
        rospy.logdebug("reset_monoped_joint_controllers...")
        self.controllers_object.reset_monoped_joint_controllers()

        # 3rd: resets the robot to initial conditions
        rospy.logdebug("set_init_pose...")
        self.monoped_joint_pubisher_object.set_init_pose()

        # 5th: Check all subscribers work.
        # Get the state of the Robot defined by its RPY orientation, distance from
        # desired point, contact force and JointState of the three joints
        rospy.logdebug("check_all_systems_ready...")
        self.monoped_state_object.check_all_systems_ready()
        rospy.logdebug("get_observations...")
        observation = self.monoped_state_object.get_observations()

        # 6th: We restore the gravity to original
        rospy.logdebug("Restore Gravity...")
        self.gazebo.change_gravity(0.0, 0.0, -9.81)

        # 7th: pauses simulation
        rospy.logdebug("Pause SIM...")
        self.gazebo.pauseSim()

        # Get the State Discrete Stringuified version of the observations
        state = self.get_state(observation)

        return state

    def _step(self, action):

        # Given the action selected by the learning algorithm,
        # we perform the corresponding movement of the robot

        # 1st, decide which action corresponsd to which joint is incremented
        next_action_position = self.monoped_state_object.get_action_to_position(action)

        # We move it to that pos
        self.gazebo.unpauseSim()
        self.monoped_joint_pubisher_object.move_joints(next_action_position)
        # Then we send the command to the robot and let it go
        # for running_step seconds
        time.sleep(self.running_step)
        self.gazebo.pauseSim()

        # We now process the latest data saved in the class state to calculate
        # the state and the rewards. This way we guarantee that they work
        # with the same exact data.
        # Generate State based on observations
        observation = self.monoped_state_object.get_observations()

        # finally we get an evaluation based on what happened in the sim
        reward,done = self.monoped_state_object.process_data()

        # Get the State Discrete Stringuified version of the observations
        state = self.get_state(observation)

        return state, reward, done, {}

    def get_state(self, observation):
        """
        We retrieve the Stringuified-Discrete version of the given observation
        :return: state
        """
        return self.monoped_state_object.get_state_as_string(observation)

This script creates the gym environment with the following parts:

1.Register the training environment

You will always need to do this step to inform the gym package that a new training environment is created.

2.Load the desired pose

Parameters related to the training is loaded at this step.

3.Connect with the gazebo

In order to connect the gym environment with gazebo simulation, we create a script called gazebo_connection.py in the same directory with the following content

#!/usr/bin/env python

import rospy
from std_srvs.srv import Empty
from gazebo_msgs.msg import ODEPhysics
from gazebo_msgs.srv import SetPhysicsProperties, SetPhysicsPropertiesRequest
from std_msgs.msg import Float64
from geometry_msgs.msg import Vector3

class GazeboConnection():

    def __init__(self):

        self.unpause = rospy.ServiceProxy('/gazebo/unpause_physics', Empty)
        self.pause = rospy.ServiceProxy('/gazebo/pause_physics', Empty)
        self.reset_proxy = rospy.ServiceProxy('/gazebo/reset_simulation', Empty)

        # Setup the Gravity Controle system
        service_name = '/gazebo/set_physics_properties'
        rospy.logdebug("Waiting for service " + str(service_name))
        rospy.wait_for_service(service_name)
        rospy.logdebug("Service Found " + str(service_name))

        self.set_physics = rospy.ServiceProxy(service_name, SetPhysicsProperties)
        self.init_values()
        # We always pause the simulation, important for legged robots learning
        self.pauseSim()

    def pauseSim(self):
        rospy.wait_for_service('/gazebo/pause_physics')
        try:
            self.pause()
        except rospy.ServiceException, e:
            print ("/gazebo/pause_physics service call failed")

    def unpauseSim(self):
        rospy.wait_for_service('/gazebo/unpause_physics')
        try:
            self.unpause()
        except rospy.ServiceException, e:
            print ("/gazebo/unpause_physics service call failed")

    def resetSim(self):
        rospy.wait_for_service('/gazebo/reset_simulation')
        try:
            self.reset_proxy()
        except rospy.ServiceException, e:
            print ("/gazebo/reset_simulation service call failed")

    def resetWorld(self):
        rospy.wait_for_service('/gazebo/reset_world')
        try:
            self.reset_proxy()
        except rospy.ServiceException, e:
            print ("/gazebo/reset_world service call failed")

    def init_values(self):

        rospy.wait_for_service('/gazebo/reset_simulation')
        try:
            # reset_proxy.call()
            self.reset_proxy()
        except rospy.ServiceException, e:
            print ("/gazebo/reset_simulation service call failed")

        self._time_step = Float64(0.001)
        self._max_update_rate = Float64(1000.0)

        self._gravity = Vector3()
        self._gravity.x = 0.0
        self._gravity.y = 0.0
        self._gravity.z = 0.0

        self._ode_config = ODEPhysics()
        self._ode_config.auto_disable_bodies = False
        self._ode_config.sor_pgs_precon_iters = 0
        self._ode_config.sor_pgs_iters = 50
        self._ode_config.sor_pgs_w = 1.3
        self._ode_config.sor_pgs_rms_error_tol = 0.0
        self._ode_config.contact_surface_layer = 0.001
        self._ode_config.contact_max_correcting_vel = 0.0
        self._ode_config.cfm = 0.0
        self._ode_config.erp = 0.2
        self._ode_config.max_contacts = 20

        self.update_gravity_call()

    def update_gravity_call(self):

        self.pauseSim()

        set_physics_request = SetPhysicsPropertiesRequest()
        set_physics_request.time_step = self._time_step.data
        set_physics_request.max_update_rate = self._max_update_rate.data
        set_physics_request.gravity = self._gravity
        set_physics_request.ode_config = self._ode_config

        rospy.logdebug(str(set_physics_request.gravity))

        result = self.set_physics(set_physics_request)
        rospy.logdebug("Gravity Update Result==" + str(result.success) + ",message==" + str(result.status_message))

        self.unpauseSim()

    def change_gravity(self, x, y, z):
        self._gravity.x = x
        self._gravity.y = y
        self._gravity.z = z

        self.update_gravity_call()

This script is responsible to reset, pause and unpause the simulation for the training script.

4.Connect with the controller

Since TF doesn’t like that we reset the environment and it will generate some problems. We have to manually reset the controller with the controller_connection.py script. We won’t go into detail here. If you want to learn more about the controller, please check our controller 101 course.

#!/usr/bin/env python
'''
    By Miguel Angel Rodriguez <duckfrost@theconstructsim.com>
    Visit our website at ec2-54-246-60-98.eu-west-1.compute.amazonaws.com
'''
import gym
import rospy
import numpy as np
import time
from gym import utils, spaces
from geometry_msgs.msg import Pose
from gym.utils import seeding
from gym.envs.registration import register
from gazebo_connection import GazeboConnection
from joint_publisher import JointPub
from monoped_state import MonopedState
from controllers_connection import ControllersConnection

#register the training environment in the gym as an available one
reg = register(
    id='Monoped-v0',
    entry_point='monoped_env:MonopedEnv',
    timestep_limit=50,
    )


class MonopedEnv(gym.Env):

    def __init__(self):

        # We assume that a ROS node has already been created
        # before initialising the environment

        # gets training parameters from param server
        self.desired_pose = Pose()
        self.desired_pose.position.x = rospy.get_param("/desired_pose/x")
        self.desired_pose.position.y = rospy.get_param("/desired_pose/y")
        self.desired_pose.position.z = rospy.get_param("/desired_pose/z")
        self.running_step = rospy.get_param("/running_step")
        self.max_incl = rospy.get_param("/max_incl")
        self.max_height = rospy.get_param("/max_height")
        self.min_height = rospy.get_param("/min_height")
        self.joint_increment_value = rospy.get_param("/joint_increment_value")
        self.done_reward = rospy.get_param("/done_reward")
        self.alive_reward = rospy.get_param("/alive_reward")
        self.desired_force = rospy.get_param("/desired_force")
        self.desired_yaw = rospy.get_param("/desired_yaw")

        self.weight_r1 = rospy.get_param("/weight_r1")
        self.weight_r2 = rospy.get_param("/weight_r2")
        self.weight_r3 = rospy.get_param("/weight_r3")
        self.weight_r4 = rospy.get_param("/weight_r4")
        self.weight_r5 = rospy.get_param("/weight_r5")

        # stablishes connection with simulator
        self.gazebo = GazeboConnection()

        self.controllers_object = ControllersConnection(namespace="monoped")

        self.monoped_state_object = MonopedState(   max_height=self.max_height,
                                                    min_height=self.min_height,
                                                    abs_max_roll=self.max_incl,
                                                    abs_max_pitch=self.max_incl,
                                                    joint_increment_value=self.joint_increment_value,
                                                    done_reward=self.done_reward,
                                                    alive_reward=self.alive_reward,
                                                    desired_force=self.desired_force,
                                                    desired_yaw=self.desired_yaw,
                                                    weight_r1=self.weight_r1,
                                                    weight_r2=self.weight_r2,
                                                    weight_r3=self.weight_r3,
                                                    weight_r4=self.weight_r4,
                                                    weight_r5=self.weight_r5
                                                )

        self.monoped_state_object.set_desired_world_point(self.desired_pose.position.x,
                                                          self.desired_pose.position.y,
                                                          self.desired_pose.position.z)

        self.monoped_joint_pubisher_object = JointPub()



        """
        For this version, we consider 6 actions
        1-2) Increment/Decrement haa_joint
        3-4) Increment/Decrement hfe_joint
        5-6) Increment/Decrement kfe_joint
        """
        self.action_space = spaces.Discrete(6)
        self.reward_range = (-np.inf, np.inf)

        self._seed()

    # A function to initialize the random generator
    def _seed(self, seed=None):
        self.np_random, seed = seeding.np_random(seed)
        return [seed]

    # Resets the state of the environment and returns an initial observation.
    def _reset(self):

        # 0st: We pause the Simulator
        rospy.logdebug("Pausing SIM...")
        self.gazebo.pauseSim()

        # 1st: resets the simulation to initial values
        rospy.logdebug("Reset SIM...")
        self.gazebo.resetSim()

        # 2nd: We Set the gravity to 0.0 so that we dont fall when reseting joints
        # It also UNPAUSES the simulation
        rospy.logdebug("Remove Gravity...")
        self.gazebo.change_gravity(0.0, 0.0, 0.0)

        # EXTRA: Reset JoinStateControlers because sim reset doesnt reset TFs, generating time problems
        rospy.logdebug("reset_monoped_joint_controllers...")
        self.controllers_object.reset_monoped_joint_controllers()

        # 3rd: resets the robot to initial conditions
        rospy.logdebug("set_init_pose...")
        self.monoped_joint_pubisher_object.set_init_pose()

        # 5th: Check all subscribers work.
        # Get the state of the Robot defined by its RPY orientation, distance from
        # desired point, contact force and JointState of the three joints
        rospy.logdebug("check_all_systems_ready...")
        self.monoped_state_object.check_all_systems_ready()
        rospy.logdebug("get_observations...")
        observation = self.monoped_state_object.get_observations()

        # 6th: We restore the gravity to original
        rospy.logdebug("Restore Gravity...")
        self.gazebo.change_gravity(0.0, 0.0, -9.81)

        # 7th: pauses simulation
        rospy.logdebug("Pause SIM...")
        self.gazebo.pauseSim()

        # Get the State Discrete Stringuified version of the observations
        state = self.get_state(observation)

        return state

    def _step(self, action):

        # Given the action selected by the learning algorithm,
        # we perform the corresponding movement of the robot

        # 1st, decide which action corresponsd to which joint is incremented
        next_action_position = self.monoped_state_object.get_action_to_position(action)

        # We move it to that pos
        self.gazebo.unpauseSim()
        self.monoped_joint_pubisher_object.move_joints(next_action_position)
        # Then we send the command to the robot and let it go
        # for running_step seconds
        time.sleep(self.running_step)
        self.gazebo.pauseSim()

        # We now process the latest data saved in the class state to calculate
        # the state and the rewards. This way we guarantee that they work
        # with the same exact data.
        # Generate State based on observations
        observation = self.monoped_state_object.get_observations()

        # finally we get an evaluation based on what happened in the sim
        reward,done = self.monoped_state_object.process_data()

        # Get the State Discrete Stringuified version of the observations
        state = self.get_state(observation)

        return state, reward, done, {}

    def get_state(self, observation):
        """
        We retrieve the Stringuified-Discrete version of the given observation
        :return: state
        """
        return self.monoped_state_object.get_state_as_string(observation)

5.Generate state object

The state object is then generated with the current state with the following monoped_state.py script

#!/usr/bin/env python
'''
    By Miguel Angel Rodriguez <duckfrost@theconstructsim.com>
    Visit our website at ec2-54-246-60-98.eu-west-1.compute.amazonaws.com
'''
import gym
import rospy
import numpy as np
import time
from gym import utils, spaces
from geometry_msgs.msg import Pose
from gym.utils import seeding
from gym.envs.registration import register
from gazebo_connection import GazeboConnection
from joint_publisher import JointPub
from monoped_state import MonopedState
from controllers_connection import ControllersConnection

#register the training environment in the gym as an available one
reg = register(
    id='Monoped-v0',
    entry_point='monoped_env:MonopedEnv',
    timestep_limit=50,
    )


class MonopedEnv(gym.Env):

    def __init__(self):

        # We assume that a ROS node has already been created
        # before initialising the environment

        # gets training parameters from param server
        self.desired_pose = Pose()
        self.desired_pose.position.x = rospy.get_param("/desired_pose/x")
        self.desired_pose.position.y = rospy.get_param("/desired_pose/y")
        self.desired_pose.position.z = rospy.get_param("/desired_pose/z")
        self.running_step = rospy.get_param("/running_step")
        self.max_incl = rospy.get_param("/max_incl")
        self.max_height = rospy.get_param("/max_height")
        self.min_height = rospy.get_param("/min_height")
        self.joint_increment_value = rospy.get_param("/joint_increment_value")
        self.done_reward = rospy.get_param("/done_reward")
        self.alive_reward = rospy.get_param("/alive_reward")
        self.desired_force = rospy.get_param("/desired_force")
        self.desired_yaw = rospy.get_param("/desired_yaw")

        self.weight_r1 = rospy.get_param("/weight_r1")
        self.weight_r2 = rospy.get_param("/weight_r2")
        self.weight_r3 = rospy.get_param("/weight_r3")
        self.weight_r4 = rospy.get_param("/weight_r4")
        self.weight_r5 = rospy.get_param("/weight_r5")

        # stablishes connection with simulator
        self.gazebo = GazeboConnection()

        self.controllers_object = ControllersConnection(namespace="monoped")

        self.monoped_state_object = MonopedState(   max_height=self.max_height,
                                                    min_height=self.min_height,
                                                    abs_max_roll=self.max_incl,
                                                    abs_max_pitch=self.max_incl,
                                                    joint_increment_value=self.joint_increment_value,
                                                    done_reward=self.done_reward,
                                                    alive_reward=self.alive_reward,
                                                    desired_force=self.desired_force,
                                                    desired_yaw=self.desired_yaw,
                                                    weight_r1=self.weight_r1,
                                                    weight_r2=self.weight_r2,
                                                    weight_r3=self.weight_r3,
                                                    weight_r4=self.weight_r4,
                                                    weight_r5=self.weight_r5
                                                )

        self.monoped_state_object.set_desired_world_point(self.desired_pose.position.x,
                                                          self.desired_pose.position.y,
                                                          self.desired_pose.position.z)

        self.monoped_joint_pubisher_object = JointPub()



        """
        For this version, we consider 6 actions
        1-2) Increment/Decrement haa_joint
        3-4) Increment/Decrement hfe_joint
        5-6) Increment/Decrement kfe_joint
        """
        self.action_space = spaces.Discrete(6)
        self.reward_range = (-np.inf, np.inf)

        self._seed()

    # A function to initialize the random generator
    def _seed(self, seed=None):
        self.np_random, seed = seeding.np_random(seed)
        return [seed]

    # Resets the state of the environment and returns an initial observation.
    def _reset(self):

        # 0st: We pause the Simulator
        rospy.logdebug("Pausing SIM...")
        self.gazebo.pauseSim()

        # 1st: resets the simulation to initial values
        rospy.logdebug("Reset SIM...")
        self.gazebo.resetSim()

        # 2nd: We Set the gravity to 0.0 so that we dont fall when reseting joints
        # It also UNPAUSES the simulation
        rospy.logdebug("Remove Gravity...")
        self.gazebo.change_gravity(0.0, 0.0, 0.0)

        # EXTRA: Reset JoinStateControlers because sim reset doesnt reset TFs, generating time problems
        rospy.logdebug("reset_monoped_joint_controllers...")
        self.controllers_object.reset_monoped_joint_controllers()

        # 3rd: resets the robot to initial conditions
        rospy.logdebug("set_init_pose...")
        self.monoped_joint_pubisher_object.set_init_pose()

        # 5th: Check all subscribers work.
        # Get the state of the Robot defined by its RPY orientation, distance from
        # desired point, contact force and JointState of the three joints
        rospy.logdebug("check_all_systems_ready...")
        self.monoped_state_object.check_all_systems_ready()
        rospy.logdebug("get_observations...")
        observation = self.monoped_state_object.get_observations()

        # 6th: We restore the gravity to original
        rospy.logdebug("Restore Gravity...")
        self.gazebo.change_gravity(0.0, 0.0, -9.81)

        # 7th: pauses simulation
        rospy.logdebug("Pause SIM...")
        self.gazebo.pauseSim()

        # Get the State Discrete Stringuified version of the observations
        state = self.get_state(observation)

        return state

    def _step(self, action):

        # Given the action selected by the learning algorithm,
        # we perform the corresponding movement of the robot

        # 1st, decide which action corresponsd to which joint is incremented
        next_action_position = self.monoped_state_object.get_action_to_position(action)

        # We move it to that pos
        self.gazebo.unpauseSim()
        self.monoped_joint_pubisher_object.move_joints(next_action_position)
        # Then we send the command to the robot and let it go
        # for running_step seconds
        time.sleep(self.running_step)
        self.gazebo.pauseSim()

        # We now process the latest data saved in the class state to calculate
        # the state and the rewards. This way we guarantee that they work
        # with the same exact data.
        # Generate State based on observations
        observation = self.monoped_state_object.get_observations()

        # finally we get an evaluation based on what happened in the sim
        reward,done = self.monoped_state_object.process_data()

        # Get the State Discrete Stringuified version of the observations
        state = self.get_state(observation)

        return state, reward, done, {}

    def get_state(self, observation):
        """
        We retrieve the Stringuified-Discrete version of the given observation
        :return: state
        """
        return self.monoped_state_object.get_state_as_string(observation)

6.Reset

Setup the environment back to its initial observation. This includes the steps like pause the simulation, reset the controller and etc. as we described before.

7.Step

In this part, an action will be decided based on the current state and then be published with the following joint_publisher.py script. After that, the reward is calculated based on the new observation.

#!/usr/bin/env python

import rospy
import math
from std_msgs.msg import String
from std_msgs.msg import Float64

class JointPub(object):
    def __init__(self):

        self.publishers_array = []
        self._haa_joint_pub = rospy.Publisher('/monoped/haa_joint_position_controller/command', Float64, queue_size=1)
        self._hfe_joint_pub = rospy.Publisher('/monoped/hfe_joint_position_controller/command', Float64, queue_size=1)
        self._kfe_joint_pub = rospy.Publisher('/monoped/kfe_joint_position_controller/command', Float64, queue_size=1)

        self.publishers_array.append(self._haa_joint_pub)
        self.publishers_array.append(self._hfe_joint_pub)
        self.publishers_array.append(self._kfe_joint_pub)

        self.init_pos = [0.0,0.0,0.0]

    def set_init_pose(self):
        """
        Sets joints to initial position [0,0,0]
        :return:
        """
        self.check_publishers_connection()
        self.move_joints(self.init_pos)


    def check_publishers_connection(self):
        """
        Checks that all the publishers are working
        :return:
        """
        rate = rospy.Rate(10)  # 10hz
        while (self._haa_joint_pub.get_num_connections() == 0):
            rospy.logdebug("No susbribers to _haa_joint_pub yet so we wait and try again")
            try:
                rate.sleep()
            except rospy.ROSInterruptException:
                # This is to avoid error when world is rested, time when backwards.
                pass
        rospy.logdebug("_haa_joint_pub Publisher Connected")

        while (self._hfe_joint_pub.get_num_connections() == 0):
            rospy.logdebug("No susbribers to _hfe_joint_pub yet so we wait and try again")
            try:
                rate.sleep()
            except rospy.ROSInterruptException:
                # This is to avoid error when world is rested, time when backwards.
                pass
        rospy.logdebug("_hfe_joint_pub Publisher Connected")

        while (self._kfe_joint_pub.get_num_connections() == 0):
            rospy.logdebug("No susbribers to _kfe_joint_pub yet so we wait and try again")
            try:
                rate.sleep()
            except rospy.ROSInterruptException:
                # This is to avoid error when world is rested, time when backwards.
                pass
        rospy.logdebug("_kfe_joint_pub Publisher Connected")

        rospy.logdebug("All Publishers READY")

    def joint_mono_des_callback(self, msg):
        rospy.logdebug(str(msg.joint_state.position))

        self.move_joints(msg.joint_state.position)

    def move_joints(self, joints_array):

        i = 0
        for publisher_object in self.publishers_array:
          joint_value = Float64()
          joint_value.data = joints_array[i]
          rospy.logdebug("JointsPos>>"+str(joint_value))
          publisher_object.publish(joint_value)
          i += 1


    def start_loop(self, rate_value = 2.0):
        rospy.logdebug("Start Loop")
        pos1 = [0.0,0.0,1.6]
        pos2 = [0.0,0.0,-1.6]
        position = "pos1"
        rate = rospy.Rate(rate_value)
        while not rospy.is_shutdown():
          if position == "pos1":
            self.move_joints(pos1)
            position = "pos2"
          else:
            self.move_joints(pos2)
            position = "pos1"
          rate.sleep()

    def start_sinus_loop(self, rate_value = 2.0):
        rospy.logdebug("Start Loop")
        w = 0.0
        x = 2.0*math.sin(w)
        #pos_x = [0.0,0.0,x]
        #pos_x = [x, 0.0, 0.0]
        pos_x = [0.0, x, 0.0]
        rate = rospy.Rate(rate_value)
        while not rospy.is_shutdown():
            self.move_joints(pos_x)
            w += 0.05
            x = 2.0 * math.sin(w)
            #pos_x = [0.0, 0.0, x]
            #pos_x = [x, 0.0, 0.0]
            pos_x = [0.0, x, 0.0]
            rate.sleep()


if __name__=="__main__":
    rospy.init_node('joint_publisher_node')
    joint_publisher = JointPub()
    rate_value = 50.0
    #joint_publisher.start_loop(rate_value)
    joint_publisher.start_sinus_loop(rate_value)

Step 2. Training

Now you have all the code you need to start training. Let’s run the simulation first. Go to Simulations -> Select launch file -> my_legged_robot_sims->main.launch to launch the hopper robot simulation in Gazebo.

Then you can run the training with

roslaunch my_hopper_training main.launch

The algorithm is working and start to train the robot to perform the task we want, however, it still requires lots of tuning to work properly.

You can have multiple instances and train robots with different parameters in parallel with our paid program in ROSDS. Please check it here if you are interested.

Edit by: Tony Huang

[irp]

Here you will find all the code:
https://bitbucket.org/theconstructcore/hopper/src/master/

Or use directly the project of ROSDevelopementStudio:
https://rds.theconstructsim.com/tc_projects/use_project_share_link/0a40a3bf-e0be-4119-8364-ac443c68545a

Check Out this OpenAI course in RobotIgnite Academy for learning the basics step by step: https://wp.me/P9Rthq-1UZ

[ROS Projects] OpenAI with Hopper Robot in Gazebo Step-by-Step

In this series, we are going to show you how to build a hopper robot in ROS and make it learn to hop using reinforcement learning algorithm. The hopper robot simulation has been built in the last post. In case you didn’t follow it, you can find the post here.

Part 1

Use OpenAI to make a Hopper robot learn in Gazebo simulator, using ROS Development Studio. We will use Qlearning and Gym for that.

Step 1. Create a training package

Let’s create a package for training

cd ~/simulation_ws/src/loco_motion
catkin_create_pkg my_hopper_training rospy

Then we create a launch file called main.launch inside the my_hopper_training/launch directory with the following content

<!--
    Date of creation: 5/II/2018
    Application created by: Miguel Angel Rodriguez <duckfrost@theconstructsim.com>
    The Construct https://www.theconstruct.ai
    License LGPLV3 << Basically means you can do whatever you want with this!
-->

<launch>

    <!-- Load the parameters for the algorithm -->
    <rosparam command="load" file="$(find my_hopper_training)/config/qlearn_params.yaml" />

    <!-- Launch the training system -->
    <node pkg="my_hopper_training" name="monoped_gym" type="start_training_v2.py" output="screen"/>
</launch>

To implement reinforcement learning, we’ll use an algorithm called q-learn. We’ll save the parameters for the q-learn algorithm as qlearn_params.yaml under the my_hopper_training/config directory with the following content

# Algortihm Parameters
alpha: 0.1
gamma: 0.8
epsilon: 0.9
epsilon_discount: 0.999 # 1098 eps to reach 0.1
nepisodes: 100000
nsteps: 1000

# Environment Parameters
desired_pose:
    x: 0.0
    y: 0.0
    z: 1.0
desired_force: 7.08 # In Newtons, normal contact force when stanting still with 9.81 gravity
desired_yaw: 0.0 # Desired yaw in radians for the hopper to stay
max_height: 3.0   # in meters
min_height: 0.5   # in meters
max_incl: 1.57       # in rads
running_step: 0.001   # in seconds
joint_increment_value: 0.05  # in radians
done_reward: -1000.0 # reward
alive_reward: 100.0 # reward

weight_r1: 1.0 # Weight for joint positions ( joints in the zero is perfect )
weight_r2: 0.0 # Weight for joint efforts ( no efforts is perfect )
weight_r3: 1.0 # Weight for contact force similar to desired ( weight of monoped )
weight_r4: 1.0 # Weight for orientation ( vertical is perfect )
weight_r5: 1.0 # Weight for distance from desired point ( on the point is perfect )

In this post, we’ll focus on explaining the training script. Let’s create it under the my_hopper_training_src directory and call it start_training_v2.py with the following content

#!/usr/bin/env python

'''
    Original Training code made by Ricardo Tellez <rtellez@theconstructsim.com>
    Moded by Miguel Angel Rodriguez <duckfrost@theconstructsim.com>
    Visit our website at ec2-54-246-60-98.eu-west-1.compute.amazonaws.com
'''
import gym
import time
import numpy
import random
import qlearn
from gym import wrappers
from std_msgs.msg import Float64
# ROS packages required
import rospy
import rospkg

# import our training environment
import monoped_env


if __name__ == '__main__':

    rospy.init_node('monoped_gym', anonymous=True, log_level=rospy.INFO)

    # Create the Gym environment
    env = gym.make('Monoped-v0')
    rospy.logdebug ( "Gym environment done")
    reward_pub = rospy.Publisher('/monoped/reward', Float64, queue_size=1)
    episode_reward_pub = rospy.Publisher('/monoped/episode_reward', Float64, queue_size=1)

    # Set the logging system
    rospack = rospkg.RosPack()
    pkg_path = rospack.get_path('my_hopper_training')
    outdir = pkg_path + '/training_results'
    env = wrappers.Monitor(env, outdir, force=True)
    rospy.logdebug("Monitor Wrapper started")

    last_time_steps = numpy.ndarray(0)

    # Loads parameters from the ROS param server
    # Parameters are stored in a yaml file inside the config directory
    # They are loaded at runtime by the launch file
    Alpha = rospy.get_param("/alpha")
    Epsilon = rospy.get_param("/epsilon")
    Gamma = rospy.get_param("/gamma")
    epsilon_discount = rospy.get_param("/epsilon_discount")
    nepisodes = rospy.get_param("/nepisodes")
    nsteps = rospy.get_param("/nsteps")

    # Initialises the algorithm that we are going to use for learning
    qlearn = qlearn.QLearn(actions=range(env.action_space.n),
                    alpha=Alpha, gamma=Gamma, epsilon=Epsilon)
    initial_epsilon = qlearn.epsilon

    start_time = time.time()
    highest_reward = 0

    # Starts the main training loop: the one about the episodes to do
    for x in range(nepisodes):
        rospy.loginfo ("STARTING Episode #"+str(x))

        cumulated_reward = 0
        cumulated_reward_msg = Float64()
        episode_reward_msg = Float64()
        done = False
        if qlearn.epsilon > 0.05:
            qlearn.epsilon *= epsilon_discount

        # Initialize the environment and get first state of the robot
        rospy.logdebug("env.reset...")
        # Now We return directly the stringuified observations called state
        state = env.reset()

        rospy.logdebug("env.get_state...==>"+str(state))

        # for each episode, we test the robot for nsteps
        for i in range(nsteps):

            # Pick an action based on the current state
            action = qlearn.chooseAction(state)

            # Execute the action in the environment and get feedback
            rospy.logdebug("###################### Start Step...["+str(i)+"]")
            rospy.logdebug("haa+,haa-,hfe+,hfe-,kfe+,kfe- >> [0,1,2,3,4,5]")
            rospy.logdebug("Action to Perform >> "+str(action))
            nextState, reward, done, info = env.step(action)
            rospy.logdebug("END Step...")
            rospy.logdebug("Reward ==> " + str(reward))
            cumulated_reward += reward
            if highest_reward < cumulated_reward:
                highest_reward = cumulated_reward

            rospy.logdebug("env.get_state...[distance_from_desired_point,base_roll,base_pitch,base_yaw,contact_force,joint_states_haa,joint_states_hfe,joint_states_kfe]==>" + str(nextState))

            # Make the algorithm learn based on the results
            qlearn.learn(state, action, reward, nextState)

            # We publish the cumulated reward
            cumulated_reward_msg.data = cumulated_reward
            reward_pub.publish(cumulated_reward_msg)

            if not(done):
                state = nextState
            else:
                rospy.logdebug ("DONE")
                last_time_steps = numpy.append(last_time_steps, [int(i + 1)])
                break

            rospy.logdebug("###################### END Step...["+str(i)+"]")

        m, s = divmod(int(time.time() - start_time), 60)
        h, m = divmod(m, 60)
        episode_reward_msg.data = cumulated_reward
        episode_reward_pub.publish(episode_reward_msg)
        rospy.loginfo( ("EP: "+str(x+1)+" - [alpha: "+str(round(qlearn.alpha,2))+" - gamma: "+str(round(qlearn.gamma,2))+" - epsilon: "+str(round(qlearn.epsilon,2))+"] - Reward: "+str(cumulated_reward)+"     Time: %d:%02d:%02d" % (h, m, s)))

    rospy.loginfo ( ("\n|"+str(nepisodes)+"|"+str(qlearn.alpha)+"|"+str(qlearn.gamma)+"|"+str(initial_epsilon)+"*"+str(epsilon_discount)+"|"+str(highest_reward)+"| PICTURE |"))

    l = last_time_steps.tolist()
    l.sort()

    rospy.loginfo("Overall score: {:0.2f}".format(last_time_steps.mean()))
    rospy.loginfo("Best 100 score: {:0.2f}".format(reduce(lambda x, y: x + y, l[-100:]) / len(l[-100:])))

    env.close()

We won’t go into detail to explain the q-learn algorithm. You can find a tutorial here if you are interested. You can simply copy and paste the following code into a file called qlearn.py and put it under the my_hopper_training/src directory

'''
Q-learning approach for different RL problems
as part of the basic series on reinforcement learning @

        							An introductory series to Reinforcement Learning (RL) with comprehensive step-by-step tutorials.
        https://github.com/vmayoral/basic_reinforcement_learning
        360 forks.
        1,110 stars.
        3 open issues.


Recent commits:


                        Update tutorial1 to work with Python3Signed-off-by: Víctor Mayoral Vilches <v.mayoralv@gmail.com>, Víctor Mayoral Vilches

                        Minor changes to fix headlines, GitHub

                        Rendered TeX expressions in 50b3013c682b957e0ae851bad21f76d399c5059d, texify[bot]

                        Add a few additional bits to 11th's README, Victor Mayoral Vilches

                        Rendered TeX expressions in 2f6245c5a9825f37f06f3c84bb6784217648f4e6, texify[bot]





Inspired by https://gym.openai.com/evaluations/eval_kWknKOkPQ7izrixdhriurA

        @author: Victor Mayoral Vilches <victor@erlerobotics.com>
'''

import random

class QLearn:
    def __init__(self, actions, epsilon, alpha, gamma):
        self.q = {}
        self.epsilon = epsilon  # exploration constant
        self.alpha = alpha      # discount constant
        self.gamma = gamma      # discount factor
        self.actions = actions

    def getQ(self, state, action):
        return self.q.get((state, action), 0.0)

    def learnQ(self, state, action, reward, value):
        '''
        Q-learning:
            Q(s, a) += alpha * (reward(s,a) + max(Q(s') - Q(s,a))
        '''
        oldv = self.q.get((state, action), None)
        if oldv is None:
            self.q[(state, action)] = reward
        else:
            self.q[(state, action)] = oldv + self.alpha * (value - oldv)

    def chooseAction(self, state, return_q=False):
        q = [self.getQ(state, a) for a in self.actions]
        maxQ = max(q)

        if random.random() < self.epsilon:
            minQ = min(q); mag = max(abs(minQ), abs(maxQ))
            # add random values to all the actions, recalculate maxQ
            q = [q[i] + random.random() * mag - .5 * mag for i in range(len(self.actions))]
            maxQ = max(q)

        count = q.count(maxQ)
        # In case there're several state-action max values
        # we select a random one among them
        if count > 1:
            best = [i for i in range(len(self.actions)) if q[i] == maxQ]
            i = random.choice(best)
        else:
            i = q.index(maxQ)

        action = self.actions[i]
        if return_q: # if they want it, give it!
            return action, q
        return action

    def learn(self, state1, action1, reward, state2):
        maxqnew = max([self.getQ(state2, a) for a in self.actions])
        self.learnQ(state1, action1, reward, reward + self.gamma*maxqnew)

In the training script, we are basically doing the following step:

1. create the training environment
2. read q learn parameters from the parameter server
3. try to get the highest reward with the q learn algorithm by deciding which action to take based on the current state for each timestep

That’s it for today. For the next post, we are going to explain how to build the gym training environment.

Edit by: Tony Huang

Here you will find all the code:
https://bitbucket.org/theconstructcore/hopper/src/master/

Or use directly the project of ROSDevelopementStudio:
https://rds.theconstructsim.com/tc_projects/use_project_share_link/f162963c-5651-460a-bab0-b1cd45607103

Check Out this OpenAI course in RobotIgnite Academy for learning the basics step by step:
https://wp.me/P9Rthq-1UZ
